With the development of technology, precision agriculture has become an important direction for agricultural modernization. Precision agriculture requires precise management of agricultural production based on the actual situation of farmland. The agricultural meteorological monitoring station can provide real-time meteorological data of farmland, such as temperature, humidity, light intensity, wind speed, etc. Farmers can accurately carry out agricultural operations such as irrigation, fertilization, and pesticide application based on these data.
Agricultural meteorological monitoring station is a facility that can automatically monitor and record agricultural meteorological data. It integrates multiple sensors and data processing devices, capable of real-time and continuous monitoring of key meteorological elements such as temperature, humidity, wind speed, wind direction, and rainfall in farmland, and transmits data to the data center for analysis and processing through wireless communication technology.
System Characteristics
1. The meteorological observation bracket is made of carbon steel technology, which has good corrosion resistance. Meteorological sensors are installed in a standardized manner and can operate in various harsh outdoor environments for a long time, adapting to various complex weather conditions.
2. The system has multiple power supply methods, including AC/DC dual-use or solar cell power supply.
3. It can be equipped with various indoor and outdoor display screens, including monochrome, dual color, full-color screens, and LCD screens.
4. LED wireless information publishing platform: professional and simple operation, convenient management, stable transmission, and high reliability; It can transmit program information such as text without distance limitations and has a wide range of applications; After the terminal goes offline and goes online, it can be resumed to save data
5. The working temperature is -20 ℃~50 ℃, the working humidity is 0~100%, and the wind resistance level is ≤ 75m/s.
6. The host can connect different types of sensors through a hub without affecting each other´s accuracy.
7. Used for all-weather automatic monitoring of meteorological elements such as wind speed, wind direction, rainfall, air temperature, air humidity, light intensity, atmospheric pressure, etc. It can be connected to a computer through a professional data collection communication cable, and the data can be transmitted to the meteorological database of the meteorological computer for statistical analysis and processing.

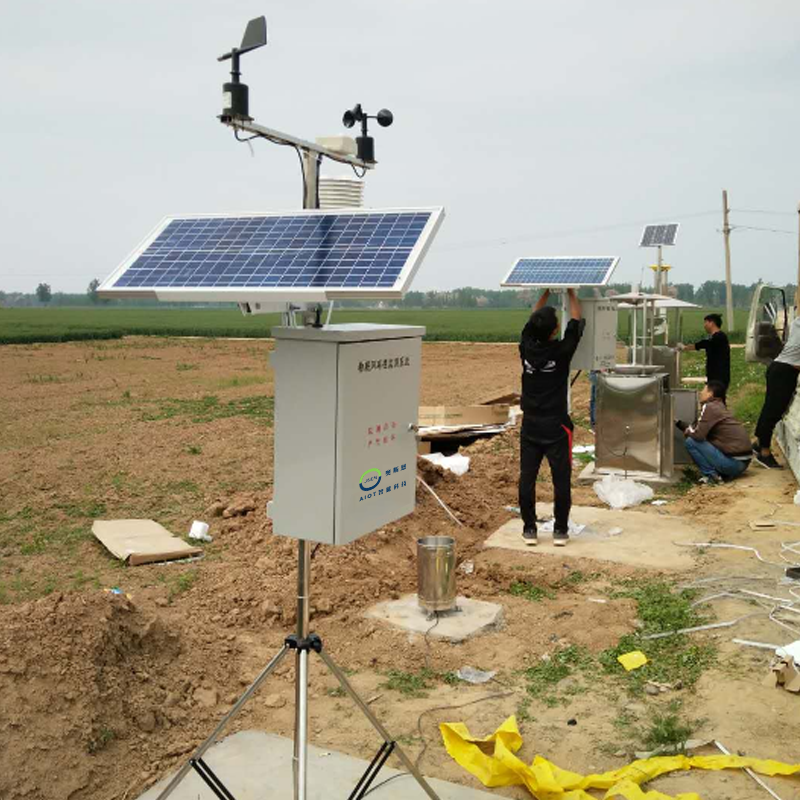

8. It consists of meteorological sensors, meteorological data recorders, power systems, field protection boxes, and stainless steel brackets. Sensors for wind speed, wind direction, rainfall, atmospheric pressure, etc. are specialized meteorological sensors with high precision and reliability. The meteorological data recorder has functions such as meteorological data collection, scheduled storage of meteorological data, parameter setting, user-friendly software human-machine interface, and standard communication. It can display graphical data, use wired communication, and run in system environments above Windows 2000. It stores data in EXCEL standard format and can generate meteorological data charts for other software to call.
9. Wired transmission method: Connect to the monitoring center PC via a standard USB/RS485 communication interface and transmit collected data in real-time.
10. Wireless transmission method: It can be uploaded through GPRS, and the measured data can be sent to the server in real time with one click or by setting the data transmission interval. The data can be viewed on web pages and mobile apps, and downloaded from anywhere as long as there is internet access.
11. Low power design, adding system monitoring and protection measures to prevent damage caused by power short circuits or external interference, and avoiding system crashes.
12. Large host data storage capacity: The device is equipped with an internal memory card that can locally store monitoring data.
13. Positioning function: Built in GPS positioning module, built-in real-time clock, with Beidou automatic timing function. Real time display and saving of the latitude and longitude of the collection points.
