Online intelligent warning of floods at water level monitoring stations guarding the first line of defense for safety
2024-12-16 07:31:36
With the development of the economy and society and the improvement of people´s living standards, the public´s attention to water safety and water environment quality is increasing. In order to strengthen the management of water conservancy projects, flood control and disaster reduction, and water resource protection, the national and local governments have issued a series of relevant laws, regulations, and policy standards, requiring monitoring and management of hydrological factors such as water levels.
Water level monitoring stations can monitor real-time changes in water levels in rivers, lakes, reservoirs, and other water bodies. These sensors can accurately measure the height of the water level and transmit the data in real-time to the monitoring center. Through big data analysis, the system can predict the trend of water level changes and provide decision support for relevant departments.
Featured Features
1.1 Multiple transmission methods
Multiple data transmission methods are provided, and front-end data can be uploaded to the smart cloud platform through 4G full network and Ethernet. Users can remotely view device data through computer or mobile devices, and also collect and integrate data through RS485 communication.
1.2 Multiple power supply methods
In order to consider the problem of difficult power supply in remote areas, the water quality online monitoring station not only uses AC 220V power supply from the city, but customers can also choose a solar power supply system to provide outdoor power to the equipment. The power of the solar panel and the capacity of the battery can be selected and customized according to requirements, ensuring operation on rainy days.
The system can achieve dual power supply, namely solar energy and mains power supply. The entire system is mainly composed of solar panels, batteries, solar controllers, and dual power supply boxes;
When using dual power supply, as long as one of them has electricity, the system can operate normally;
When either party suddenly loses power, it can seamlessly switch to the other party´s power supply, ensuring the maximum stability of the system´s power supply;
3. It can be installed in special locations where the mains power cannot reach, saving the trouble of pulling electricity and making it convenient to select installation points.
1.3 Multiple viewing methods
In addition to adding LCD touch screens for on-site data viewing on the device side, Osen has structural engineers and sheet metal processing factories under its umbrella, which can provide users with various LED display screens. The data from the radar water quality online monitoring station will be displayed in real-time on the outdoor high-definition LED display screen, with high brightness light beads ensuring clear display in outdoor environments and providing multiple specifications of display appearances for application in different scenarios.

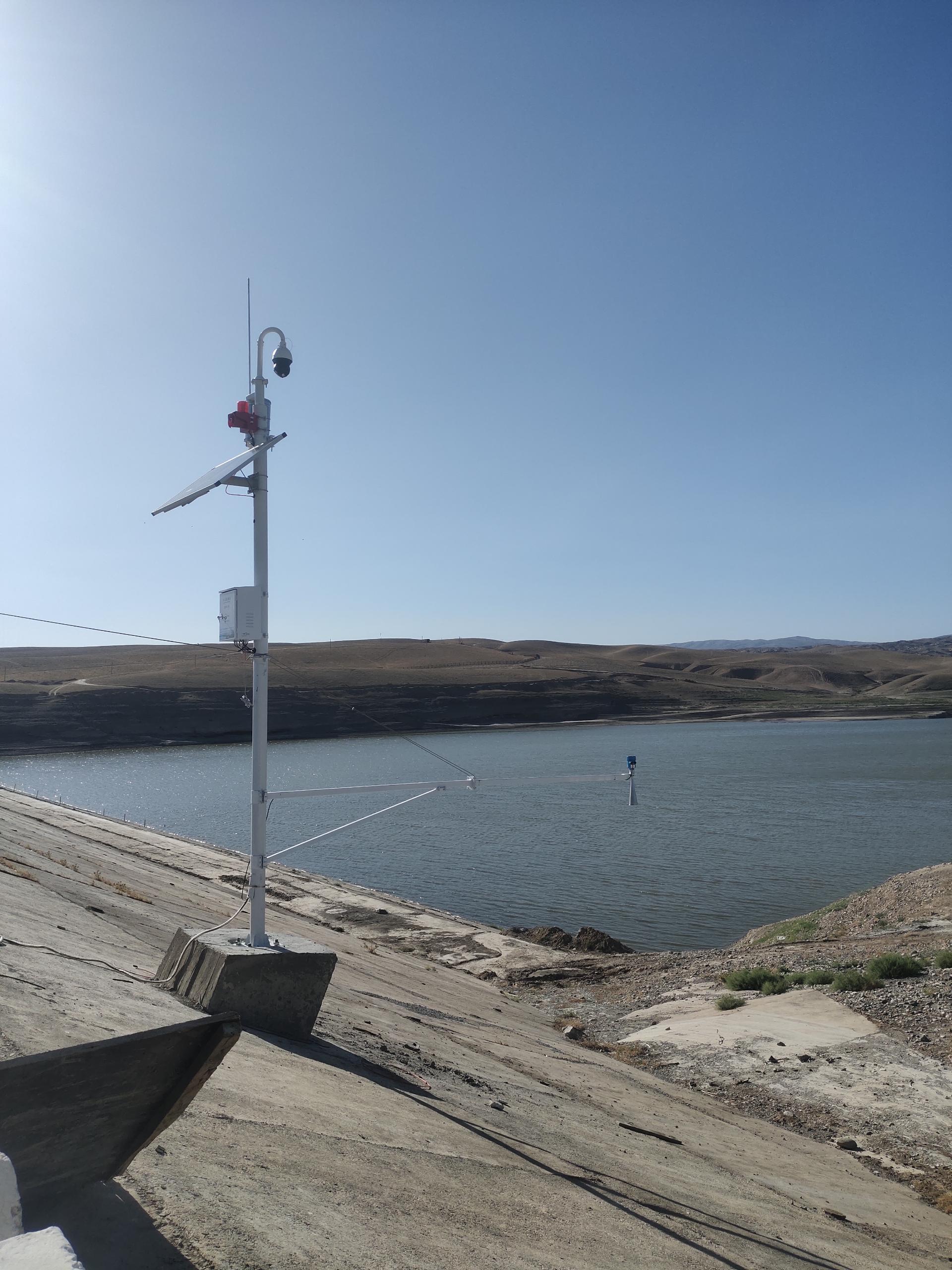

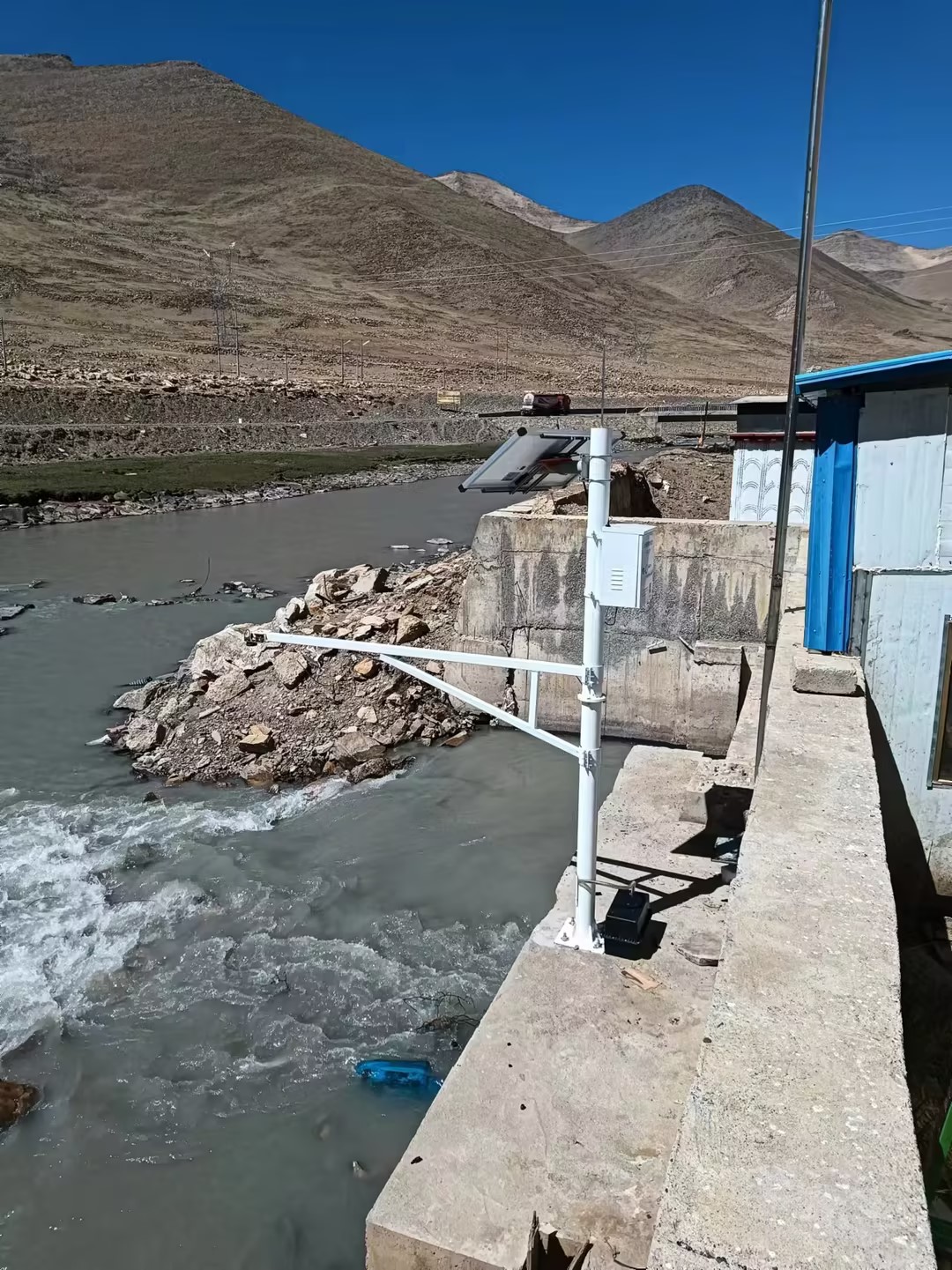

1.4 Specialized installation of horizontal bars
In order to achieve high accuracy, radar water level gauges and radar flow meters have certain installation requirements. In order to ensure that the sensors are always in a horizontal position, a special design has been made for the horizontal bar, using a triangular support structure to solve the problem of horizontal bar sagging over time and make the measurement results more accurate.
1.5 Integrated Design
The equipment adopts an integrated design concept, with wiring holes on both the horizontal and vertical poles. All sensor wiring is done inside the pole body and has independent wire markers. Users can connect and plug according to the wire markers, making installation convenient and fast. It also effectively avoids the influence of outdoor environment and animals on cables, ensuring the service life of the equipment.
