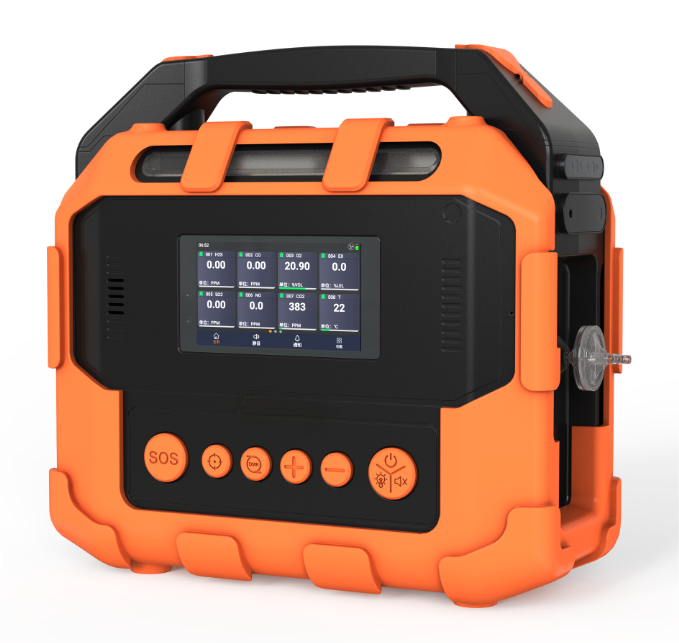

Overview of the OSEN600-S Portable Multi-component Gas Analyzer
The OSEN600-S portable multi-component gas analyzer is designed for precise detection and analysis of various gas concentrations. Featuring a 5-inch high-definition color display for real-time monitoring, its detection principles primarily include electrochemical analysis, infrared NDIR technology, and high-precision long-life PID photoionization. Widely applied in industrial hygiene zones for air quality monitoring, environmental control systems, firefighting operations, emergency response protocols, confined space safety, and applications across petroleum, chemical, metallurgical, refining, gas distribution, storage, pharmaceutical, environmental protection, flue gas analysis, and air purification industries, this instrument offers robust functionality with customizable add-on features.
OSEN600-S Portable Multi-component Gas Analyzer Features
Capable of detecting multiple factors simultaneously
The specific types of detection depend on the internal sensor configuration of the instrument.
Modular sensor design supports simultaneous installation of four six-in-one modules, with each module featuring full plug-and-play functionality and snap-fit connections for gas lines and communication interfaces.
Built-in pump suction measurement with 10-level flow adjustment.
5-inch HD color display with capacitive touchscreen, running Android OS, supporting remote maintenance and OTA wireless upgrades.
64GB storage capacity with optional larger options and multiple storage modes.
Communication interface: Supports TYPE-C, WIFI, and Bluetooth connectivity, with optional Bluetooth printer integration for on-site printing.
Standard features: GPS/Beidou precision positioning, LED lighting, and SOS one-touch distress call.
Data statistical analysis function;
Factory parameters and data recovery function, allowing partial or full recovery to prevent accidental operations;
Displays maximum value, minimum value, weighted average, and real-time curve.
Multiple alarm modes with customizable settings, providing multi-directional stereoscopic display of alarm status and selectable alarm sounds.
Alarm methods: audio-visual alarm, audio-visual + visual alarm, vibration alarm, and voice (multilingual) alarm.
Alarm types: concentration alarm, undervoltage alarm, fault alarm, pump blockage alarm.
Alarm modes: Low alarm, High alarm, Interval alarm, Weighted average alarm.
Error detection feature.
Auto zero tracking.
Multi-level calibration of target points.
Protection rating: IP67.
