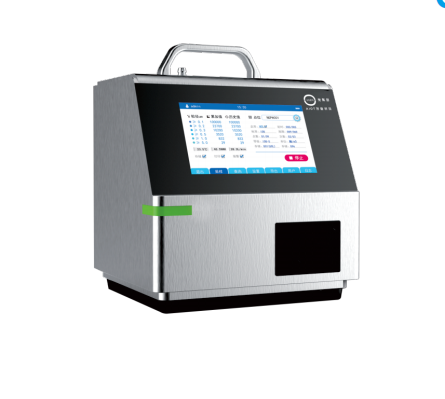

OSEN T4011 TYPETABLETOP LASER DUST PARTICLE COUNTER
The OSEN-T4011 desktop laser particle counter operates on the fundamental principle of light scattering.Utilizing advanced photoelectric sensing technology, it delivers precise particle size measurement and accurate particle counting. Featuring high precision and sensitivity,this device can detect particles as small as 0.1 microns.Widely applicable in ultra-clean environments requiring stringent environmental control, it serves critical sectors including electronics manufacturing, semiconductor production, LCD panel processing, micro/nano technology fabrication, aerospace R&D, precision machining, advanced material development, and research institutes. This solution ensures effective monitoring and management of particulate matter in these high-purity industrial applications.
Product features
Using 28.3L large flow sampling, the sampling accuracy and efficiency are greatly improved;
With a 7-inch high-definition screen, the cleanliness data can be read intuitively;
Friendly interface for human-computer interaction, easy and simple operation;
The whole 304 stainless steel body meets the requirements of GMP;
Supports 20,000 sets of large capacity data storage, and can export PDF files from USB drives with one click;
Supports preset functions for 400 room locations, one-click selection and rapid sampling;
Supports 20 user management, password complexity management and multi-level permission management;
Support audit trail, log management, query, traceability and control;
Comply with FDA 21 CFR Part 11 specifications;
Supports calibration reminder function to remind users to measure in time;
Long life semiconductor laser source, life more than 70,000 hours (annual calibration required) Screen data alarm, real-time monitoring of flow and real-time self-regulation of flow;
Built-in large capacity rechargeable lithium battery, support both AC and DC power;
l It can be expanded and has analog access hardware interface, which supports external temperature/humidity sensor, wind speed sensor, pressure difference sensor, etc. (optional).
Product functions
Real-time measurement and display
It can accurately measure the number and particle size distribution of dust particles per unit volume in a clean environment, and display it digitally on the screen in real time.
Data storage and printing
Realize the setting of measurement parameters, display of measurement results, data storage and printing functions. The data memory can store multiple sets of measurement results for subsequent analysis and processing.
out of limit alarming
Supports the setting of different cleanliness levels. When the measurement result exceeds the set threshold, an alarm signal will be sent immediately to remind users to take corresponding measures.

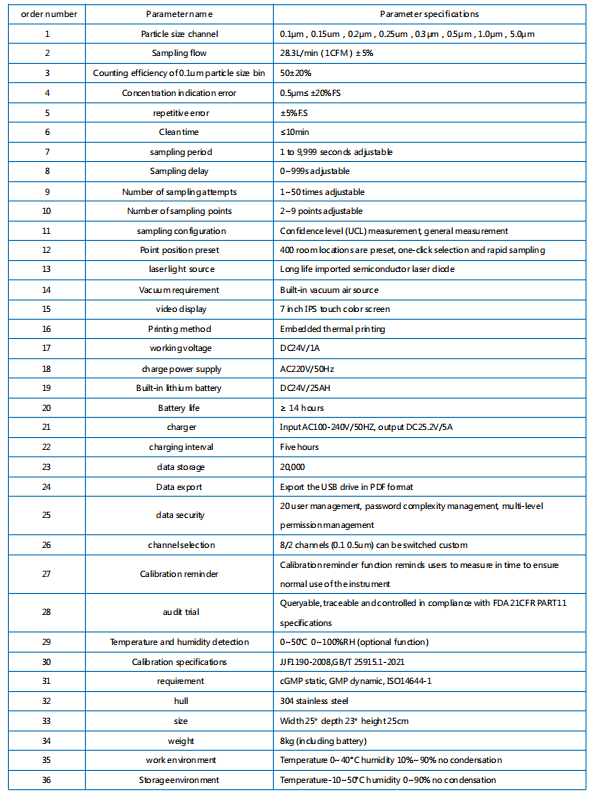

Product parameters
