ONLINE MONITORING SYSTEM FOR URBAN WATERLOGGING

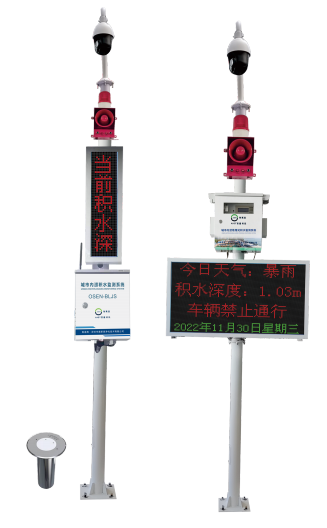

The urban waterlogging monitoring system is an integrated solution combining computer network technology, database systems, communication technologies, and advanced sensing devices. Built on IoT infrastructure, it merges intelligent perception with smart services to create a comprehensive monitoring framework. This system aims to enhance regulatory capabilities and provide technological support for safeguarding public safety and property protection. The system consists of a buried water accumulation monitoring main station, LORA buried sensors, and an integrated environmental monitoring cloud platform. It provides real time monitoring and early warning services for water prone areas such as urban roads, ground surfaces, tunnels, and overpasses. Featuring highly integrated equipment, the system continuously monitors water levels in low lying urban areas and enables automatic alarm functions. By consolidating data from multiple monitoring points, the system comprehensively tracks urban flooding conditions and facilitates timely drainage scheduling.
System features
Real time and continuous monitoring of water accumulation, data update frequency is high;
Using high precision sensors and advanced data processing algorithms, it can accurately measure the depth of water;
The sensor is buried underground, free from interference of external environmental factors;
Realized automatic monitoring and early warning, no manual intervention, reduce labor costs;
It has good scalability and can flexibly increase the number and distribution range of monitoring points.
System functions
High precision real time monitoring
The core sensors of the monitoring equipment are all high precision sensors with wide measurement range and high accuracy to ensure excellent reliability, high precision and stability of the product.
Multiple viewing modes
It supports multi platform remote management. The urban waterlogging buried water monitoring system supports computer web terminal, mobile APP, wechat mini program, wechat public account and other ways for data viewing and remote management.
Wireless network transmission
The system employs high performance industrial grade LoRa transmitters to deliver wireless data transmission through LoRa networks. Built on an embedded real time operating system platform, it features low power design with multi level sleep/wake modes for maximum energy efficiency. Capable of simultaneously communicating with 32 buried water level monitoring points within effective coverage range, the system effectively eliminates signal interference between end nodes during transmission while overcoming traditional wireless devices´ limitations of short communication range and poor penetration. This innovative design achieves both low power consumption and long distance connectivity.
Real time positioning
The system supports real time positioning of equipment, and can view the installation location of each monitoring point in the GIS map of the cloud platform. When the data is abnormal or beyond the limit, alarm can be displayed to facilitate the quick identification of abnormal equipment and timely processing for later maintenance and management.
Overstandard alarm linkage
The system supports setting threshold values and intelligent linkage functions. By utilizing urban flood prevention parameters, it can predict impending flooding conditions in advance. It activates on site LED displays and alarm lights to alert residents for safe travel, while coordinating with on site drainage equipment to initiate prompt drainage operations, effectively preventing and delaying urban flooding. The weather fore casting feature provides real time updates based on specific city locations.

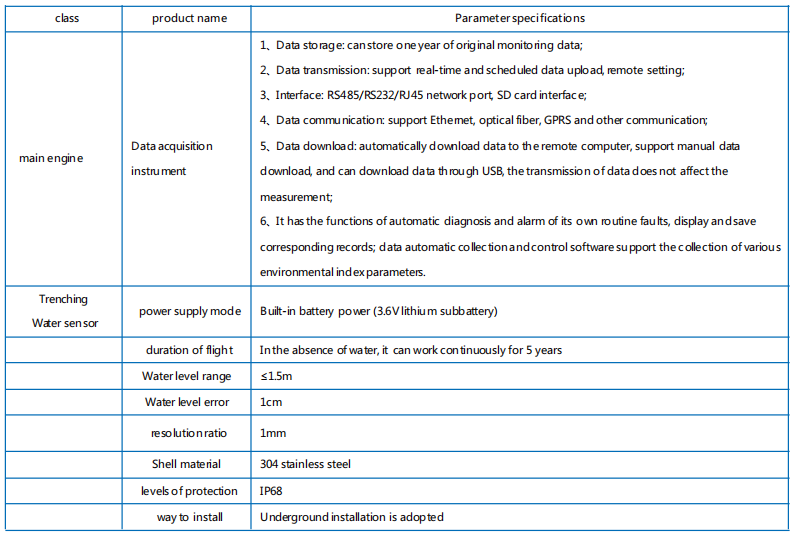

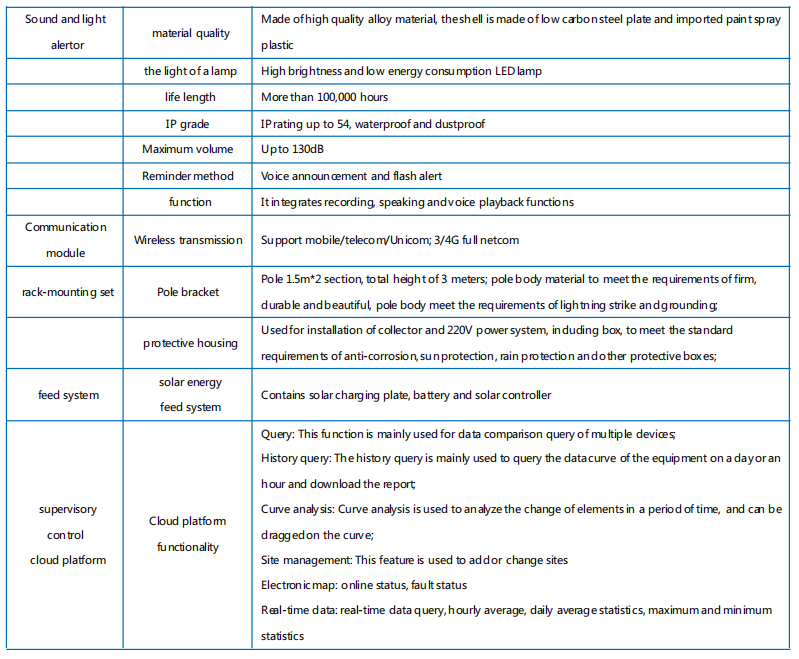

technical parameter
