product presentation

Microenvironment air quality monitoring system is a kind of unattended environmental monitoring system integrating data collection, storage, transmission and management, Can monitor the environment all-weather, continuously and automatically, Based on the provision of seven parameter data, including PM10, PM2.5, SO2, NO2, CO, O3, and VOC, Expsible monitoring of meteorological parameters, According to the concept of "net fixed frame, grid setting responsibility, responsibility setting people", Establish a regional grid monitoring platform of "horizontal to the edge, vertical to the end", Application and integration of a number of intelligent environmental protection technologies, On the basis of a comprehensive grasp and analysis of the emission and meteorological factors of pollution sources, Adopt the flexible set-point method according to local conditions for deployment. Real-time statistics of the monitoring equipment data of each plant and monitoring point, According to the environmental conditions and the pollution situation of each monitoring point, To analyze and infer the overall emissions in the region, To realize the overall monitoring of hot spot emission areas, Pollutant diffusion trend calculation and emission source analysis and other functions; At the same time, combined with the Internet of Things, intelligent acquisition system, geographic information system, dynamic chart system and other advanced technologies, Integration, sharing, development, Establish a comprehensive, refined, information and intelligent online regional environment monitoring platform, To control the unorganized discharge of pollution sources, Comprehensive management of reducing air pollution, Provide reliable data information and scientific auxiliary management decision for the formulation of energy conservation and emission reduction plan; To provide detailed data and scientific basis for environmental decision-making, environmental management, pollution prevention and control of environmental protection departments.

technical parameter

technical feature

（1） With the function of cloud automatic online calibration, it can realize the automatic correction of zero point and range drift and the automatic correction of cross interference, and support manual calibration. The micro automatic monitoring station equipment supports remote online calibration function, users can conduct online calibration of the equipment, correct the data abnormality and environmental interference caused by the zero drift of the equipment, without on-site manual calibration;

（2） The grid mesh is adopted, suitable for various meteorological conditions, to ensure no dead Angle in air circulation and no temperature difference between inside and outside. The gas flow is monitored by free diffusion. With the grid mesh structure, the free contact between the monitoring sensor and the external gas is realized, so as to ensure no dead Angle in air circulation and no temperature difference between inside and outside. At the same time, the air monitoring sensor is located at the bottom of the equipment, and wrapped in the grid mesh metal structure, can be very good rain and wind protection, suitable for a variety of meteorological conditions;

（3） Using louver design, suitable for all kinds of meteorological conditions, to ensure that the air circulation without dead Angle, no temperature difference between inside and outside;

（4） Gas parameters and inhalable particles can be monitored simultaneously, and the monitoring value can be displayed on the data platform;

（5） No tool disassembly, convenient for point migration and equipment maintenance;

（6） Using the imported sensor with high sensitivity, fast response time, high resolution, good linearity, the lower detection limit can reach ppb level;

（7） Gas 6 indicators are optional, and gas image five parameters, noise and other parameters can be flexibly customized;

（8） Good quality, low price, suitable for grid, mass promotion;

（9） Application of single-chip computer technology and network communication technology, with the combination of data storage function, not only can provide convenient data query, can also through the USB interface to the computer data, using the computer software automatically calculate daily average, monthly mean, pollution index, generate all kinds of graphic data, and print;

（10） The mains power supply and external solar power supply can be used to solve the problems of wiring and power connection;

（11） Stable performance, high accuracy, easy to operate, easy to maintain with power-off protection function;

（12） Adopt 32-bit high-speed processing core chip; automatic conversion of monitoring data unit, mg / m3，ppb，ppm；

（13） Multi-disciplinary algorithm model, stable and accurate data, high-precision detection of 1 ppb resolution, can reach the monitoring index of the national control station;

（14） Integrated GPRS communication technology, real-time monitoring of atmospheric environment data, real-time transmission of data, real-time monitoring of the operating status of equipment;

（15） Realize multi-parameter automatic monitoring, anti-interference technology design;

（16） High precision, reliable performance, suitable for outdoor and industrial environment;

（17） Realize all kinds of parameters collection, automatic upload network platform, automatic release of data;

（18） Small volume, modular design, grid and flexible layout;

（19） Integrated temperature compensation technology, long-term automatic calibration technology;

（20） Using the global positioning system, real-time tracking equipment;

Featured function

1.Field- -Ifield field

The intelligent sensing layer realizes multi-dimensional integration, including the in-situ measurement device of particulate matter, the real-time monitoring device of harmful gases, etc.

2.Overstandard alarm

The device can set the alarm threshold and support remote setting. When the data exceeds the alarm threshold, the device will automatically alarm and upload it to the supervision platform to remind the supervisor through the PC platform or mobile wechat terminal. At the same time, it can link the camera for capture and video recording.

3.In-situ particle measurement device

 The equipment mainly realizes the real-time monitoring of dust PM2.5 and PM10.

 The equipment adopts the principle of light scattering to measure the particle concentration. Compared with the traditional β -ray, the microshock balance method measures the dust concentration, which has the advantages of wide applicability, fast measurement speed, convenient operation and maintenance, and online real-time measurement.

 The particulate matter original taste measurement subsystem uses the highly sensitive light scattering photometer (turbidometer) technology to measure the concentration of particulate matter. The particulate matter first passes through the particle cutting device to cut out the PM5 and PM2.5 particles that we need to measure. After cutting, the particulate matter enters the optical measurement room through the sample inlet. The light source produces 880nm of infrared light to scatter on the particles, and the detector located at the 90° angular position will capture the scattered light. Through the relationship between scattered light intensity and calibrated mass concentration of particulate matter, the mass concentration is calculated in real time and transmitted to the data acquisition and processing subsystem. This optical instrument, which ideally reflects the characteristics of particulate matter, provides continuous total suspended particulate matter concentration and cut points from PM10 to PM2.5.

Instrument installed in the air pressure sensor, temperature sensor, and be calibrated after the accurate current hole between the pressure of the digital feedback signal, through the use of such flow control components, accurate control of flow, can obtain accurate sample volume and accurate particle size cutting point, realize the accurate cutting of particulate matter. Particulate matter precision cutting and data optimization ensure the high accuracy of the instrument, comparable to the US EPA certification method. In addition, the particle in situ measurement subsystem is equipped with a heater with temperature and humidity sensor, which can effectively suppress the positive deviation caused by the increase of humidity.

4.GPS orientation system

The device has a built-in GPS positioning module, using the global positioning system to record the location information of the device in real time, and upload the real-time location information to the server. Users can also log on our cloud platform and view the marking points of the location of the device on the GIS real-time map.

5.Solar energy intelligent switch

In order to prevent the power failure in the monitoring area, thus affecting the monitoring work of the equipment, solar cells can be equipped to intelligently switch the working mode intelligently. When the normal power supply is abnormal, the solar power supply mode can be automatically switched to ensure the normal operation of the equipment.

6.LCD touch screen

Equipped with 7-inch LCD touch screen, used for on-site data viewing, relevant parameter setting, good human-computer interaction experience, and can intuitively view the relevant parameter curve analysis diagram.

7.Weather forecast synchronization function

The real-time weather forecast in the installation point area of the equipment can be synchronized and displayed on the LED screen. When the real-time monitoring data information is displayed to tourists, the weather forecast can be displayed simultaneously.

8.Disconnect the network

In order to prevent the equipment from cutting off the network and resulting in the loss of monitoring data, our company has developed the network continuity transmission function. When the equipment monitors the network interruption, the monitoring data will be automatically saved to the local area. After the device is detected, the detected data during the disconnection period will be automatically uploaded to the server for storage.

9.transmission network

The equipment supports 3G / 4G, RJ 45 Ethernet interface, RS485, RS232 and other communication methods to transmit the collected data to the Austin cloud platform, storage, analysis, statistical display, and early warning processing.

Smart and environmental protection cloud platform

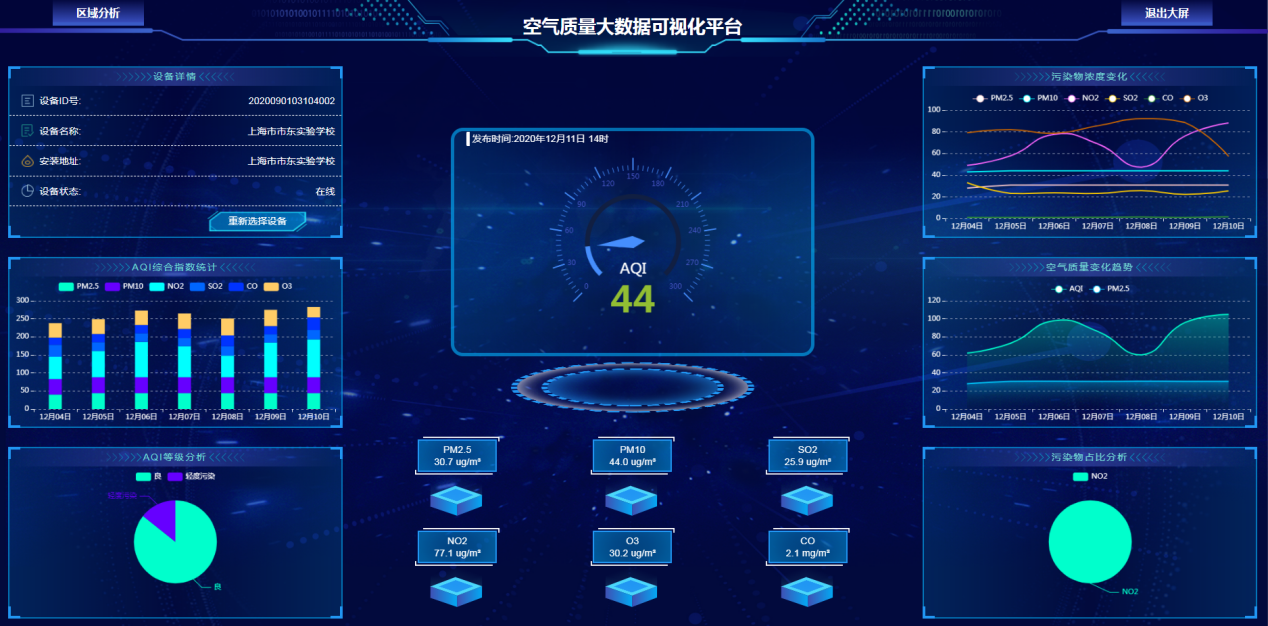

Osn wisdom environmental cloud platform, in accordance with the "net frames, proportional amount, people" concept, establish "transverse to the edge of the longitudinal" regional grid monitoring platform, application, integration of a number of wisdom environmental protection technology, based on comprehensive grasp, analysis of pollution emissions, meteorological factors, adjust measures to local conditions of flexible instruction method. Real-time statistics of the monitoring equipment data of each plant and monitoring point, According to the environmental conditions and the pollution situation of each monitoring point, To analyze and infer the overall emissions in the region, To realize the overall monitoring of hot spot emission areas, Pollutant diffusion trend calculation and emission source analysis and other functions; At the same time, combined with the Internet of Things, intelligent acquisition system, geographic information system, dynamic chart system and other advanced technologies, Integration, sharing, development, Establish a comprehensive, refined, information and intelligent online regional environment monitoring platform, To control the unorganized discharge of pollution sources, Comprehensive management of reducing air pollution, Provide reliable data information and scientific auxiliary management decision for the formulation of energy conservation and emission reduction plan; To provide detailed data and scientific basis for environmental decision-making, environmental management, pollution prevention and control of environmental protection departments.
