Product Introduction

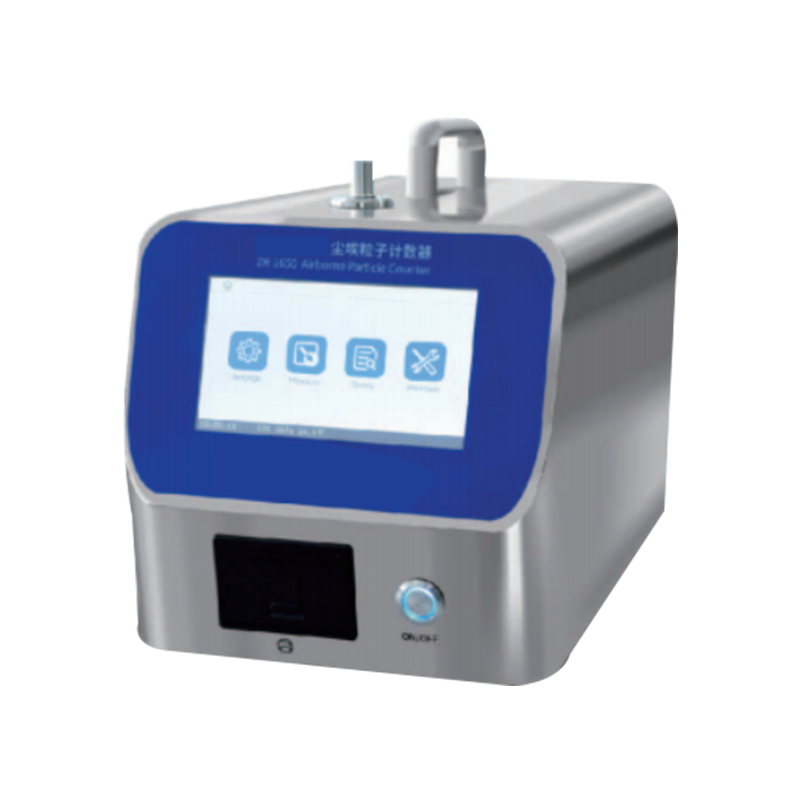

The OSEN-160A dust particle counter is a high-precision 0.1 μ m dust particle counter based on an all solid state laser, with a sampling flow rate of 28.3 L/min (1 CFM). It is a portable precision instrument that uses the principle of light scattering to measure the size and quantity of suspended particles of 0.1, 0.15, 0.2, 0.25, 0.3, 0.5, 0.7, 1.0, and 5.0 μ m in the air. It can achieve particle counting up to 9 channels and automatically perform diversified data statistics. Built in HEPA filter that can filter the discharged air. The instrument software system is customized and developed for cleanroom testing, which can meet diverse testing needs.
Suitable for clean room cleanliness testing in semiconductor integrated circuit factories, optical laboratories, clean rooms, biological laboratories, pharmaceutical factories, inspection and testing institutions, safety cabinet manufacturers, as well as testing the performance of air filters and filter materials.
Technical features
1. Up to 9 channels can be detected, and the results can be accumulated, counted in different zones, and concentration and quantity modes can also be selected;
2. Preset multiple domestic and international standards, which can automatically determine whether they are qualified;;
3. It can output a test result report, automatically determine whether it is qualified, and also automatically calculate UCL;
4. Third level user management and audit tracking to ensure data integrity;
5. The preset sampling formula can be assigned to rooms in different areas, and different allocation combinations can be managed in groups;
6. Built in high-precision fan with stable flow control;
7. Equipped with a HEPA filter to filter the discharged air;
8. No need for external high-efficiency filters, it can automatically complete self-cleaning;
9. Supports data USB drive export and built-in printer printing, with rich data transmission interfaces;
10. Can record environmental temperature, humidity, and atmospheric pressure parameters;
11.7-inch touch color screen, graphical display of Chinese characters, user-friendly human-computer interaction
